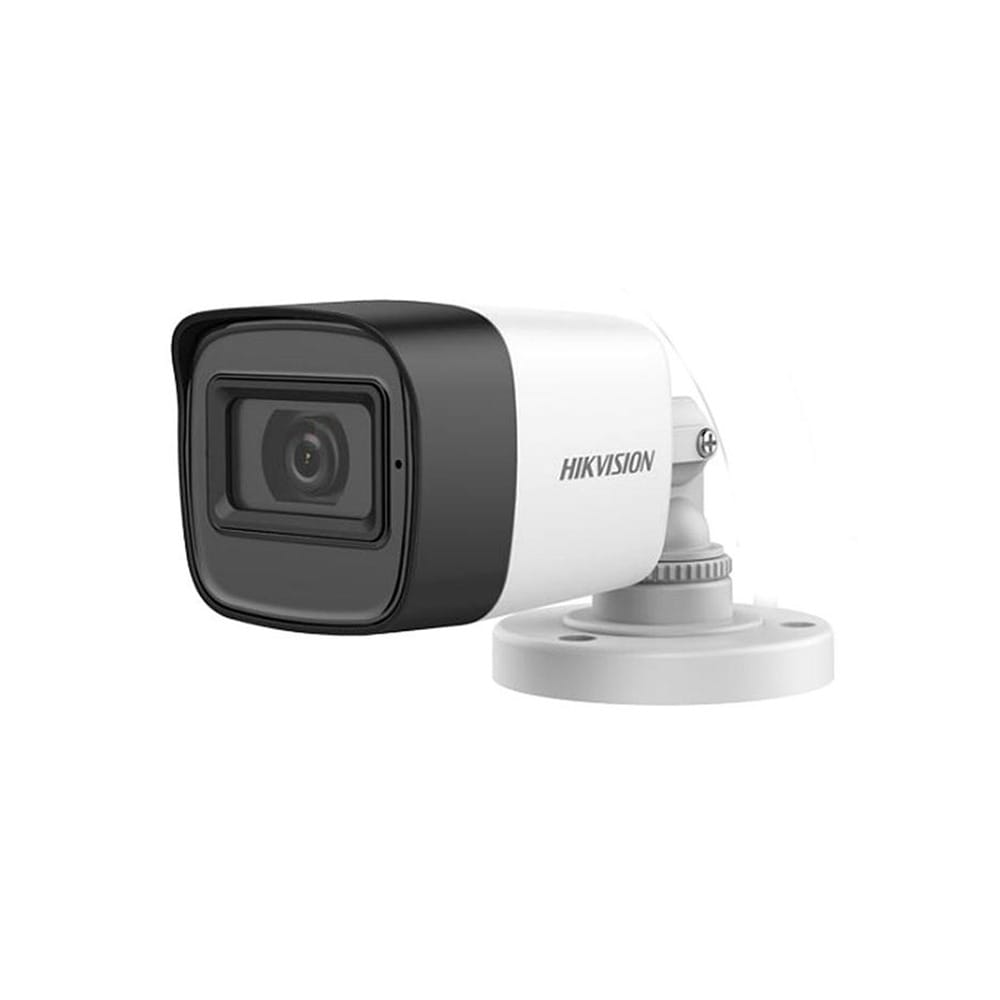

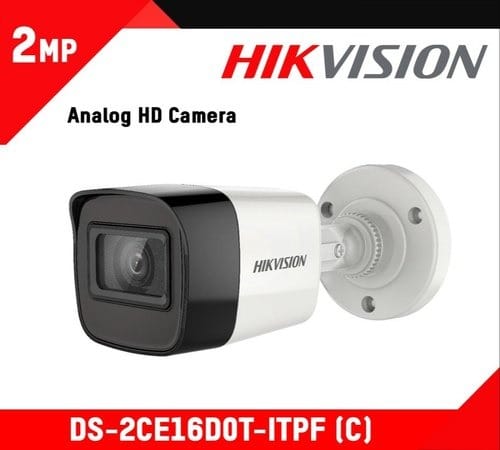

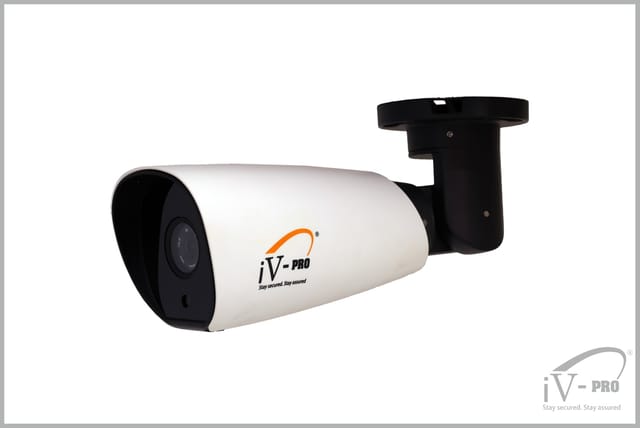

Max. Resolution 1920 (H) 1080 (V) Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Day & Night ICR. Angle Adjustment Pan: 0 to 360 , Tilt: 0 to 180 , Rotation: 0 to 360 Signal System PAL/NTSC Lens 3.6 mm fixed lens Focal Length & FOV 3.6 mm, horizontal FOV: 79.6 , vertical FOV: 43.5 , diagonal FOV: 93.7 M12 Image Image Parameters Switch STD/HIGH-SAT Image SettingsBrightness, Sharpness, Mirror, Smart IR Frame Rate TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Day/Night Mode Auto/Color/BW (Black and White) Wide Dynamic Range (WDR) Digital WDR Image Enhancement Yes White Balance Auto/Manual AGC Support Interface Video Output Switchable TVI/AHD/CVI/CVBS Protection IP67
